MCUXpresso 2.11.1¶
Overview¶
Release Notes¶
For full details about this release, refer to the Release Notes.

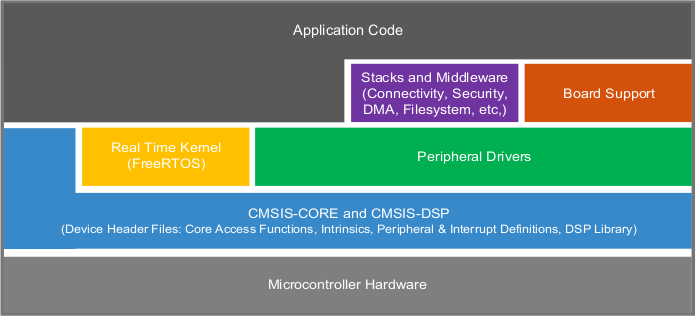

MCUXpresso SDK¶
MCUXpresso SDK board support provides example applications for NXP development and evaluation boards for Arm Cortex-M cores. Board support packages are found inside of the top level boards folder, and each supported board has its own folder (MCUXpresso SDK package can support multiple boards). Within each
- cmsis_driver_examples: Simple applications intended to concisely illustrate how to use CMSIS drivers.
- demo_apps: Full-featured applications intended to highlight key functionality and use cases of the target MCU. These applications typically use multiple MCU peripherals and may leverage stacks and middleware.
- driver_examples: Simple applications intended to concisely illustrate how to use the MCUXpresso SDK’s peripheral drivers for a single use case.
- rtos_examples: Basic FreeRTOS OS examples showcasing the use of various RTOS objects (semaphores, queues, and so on) and interfacing with the MCUXpresso SDK’s RTOS drivers.
- multicore_examples: Simple applications intended to concisely illustrate how to use middleware/multicore stack.
Here we describe how to use ARM GCC toolchain, officially supported following Getting Started with MCUXpresso SDK for EVK-MIMX8MQ.pdf.
Prerequisites¶
Before starting, prepare a Yocto boot SD card (with kernel 4.14.98 or newer).
To allow Cortex M4 accessing shared resources without experiencing Linux kernel conflicts, a dedicated device tree must be loaded, by selecting the right version with the symbolic link in the /boot folder of the booting media.
These device trees contain m4 label in their name.
The below table lists an example dtb blob file name for DART-MX8M (on DT8MCustomBoard rev. 1.3 and higher) with support for M4 (and SD card and LVDS), for each kernel version / Yocto release:
|
File Name
|
Description
|
|---|---|
| imx8mq-var-dart-dt8mcustomboard- m4 -sd-lvds.dtb | For kernel >= 5.4.85 (Yocto >= Dunfell) |
| imx8mq-var-dart- m4 -sd-lvds.dtb | For kernel = 5.4.24 (Yocto Zeus) |
| fsl-imx8mq-var-dart- m4 -sd-lvds.dtb | For kernel = 4.19.35 (Yocto Warrior) |
| Image.gz-fsl-imx8mq-var-dart- m4 -sd-lvds.dtb | For kernel = 4.14.98 (Yocto Sumo) |
For the full list of device tree blob files, refer to the "Build Results" section in the appropriate wiki page for the specific Yocto/Debian release you are using.
Installing required packages¶
Install cmake
Download and install GNU-ARM bare-metal toolchain:
$ mkdir ~/var-mcuxpresso
$ cd ~/var-mcuxpresso
$ wget https://developer.arm.com/-/media/Files/downloads/gnu-rm/10.3-2021.07/gcc-arm-none-eabi-10.3-2021.07-x86_64-linux.tar.bz2
$ tar xvf gcc-arm-none-eabi-10.3-2021.07-x86_64-linux.tar.bz2
Download MCUXpresso SDK for the SOM:
$ cd ~/var-mcuxpresso
$ git clone https://github.com/varigit/freertos-variscite -b mcuxpresso_sdk_2.11.x-var01
$ cd freertos-variscite
Documentation¶
Original NXP documentation is available online or in the following folder:
Demos pins¶
Default M4 pins used by the demos are:
| Function | Pin |
|---|---|
| debug UART (UART2) | RX: J12.6 / TX: J12.4 |
| GPIO (GPIO4_IO03) |
LED7 for DT8MCustomBoard 1.x
U43.2 / R228 for DT8MCustomBoard >= 2.0 (Use Oscilloscope to observe output signal) |
| I2C (I2C3) | SCL: J12.18 / SDA: J12.20 |
| PWM (PWM2) | J14.3 |
Available demos¶
All of the Variscite examples are located under the following folder
The available demos for DART-MX8M are:
- driver_examples/i2c/interrupt_b2b_transfer/slave
- driver_examples/i2c/interrupt_b2b_transfer/master
- driver_examples/i2c/polling_b2b_transfer/slave
- driver_examples/i2c/polling_b2b_transfer/master
- driver_examples/wdog
- driver_examples/gpio/led_output
- driver_examples/tmu/tmu_monitor_report
- driver_examples/pwm
- driver_examples/uart/auto_baudrate_detect
- driver_examples/uart/interrupt
- driver_examples/uart/interrupt_rb_transfer
- driver_examples/uart/polling
- driver_examples/uart/interrupt_transfer
- driver_examples/gpt/timer
- driver_examples/gpt/capture
- driver_examples/ecspi/ecspi_loopback
- driver_examples/qspi/polling_transfer
- driver_examples/rdc
- driver_examples/sema4/uboot
- rtos_examples/freertos_ecspi/ecspi_loopback
- rtos_examples/freertos_hello
- rtos_examples/freertos_queue
- rtos_examples/freertos_sem
- rtos_examples/freertos_generic
- rtos_examples/freertos_uart
- rtos_examples/freertos_tickless
- rtos_examples/freertos_mutex
- rtos_examples/freertos_event
- rtos_examples/freertos_swtimer
- rtos_examples/freertos_i2c
- cmsis_driver_examples/i2c/int_b2b_transfer/slave
- cmsis_driver_examples/i2c/int_b2b_transfer/master
- cmsis_driver_examples/uart/interrupt_transfer
- cmsis_driver_examples/ecspi/int_loopback_transfer
- multicore_examples/rpmsg_lite_str_echo_rtos
- multicore_examples/rpmsg_lite_pingpong_rtos/linux_remote
- demo_apps/hello_world
Almost all of the above demos are also available for EVK-MIMX8MQ.
You can build and run the demos following official NXP documentation for EVK-MIMX8MQ, available online or in the following document:
Building a demo¶
Building Manually¶
For any demo, follow these steps:
$ cd ~/var-mcuxpresso/freertos-variscite/boards/dart_mx8mq
$ cd <demo_folder>
$ cd armgcc
$ export ARMGCC_DIR=~/var-mcuxpresso/gcc-arm-none-eabi-10.3-2021.07
$ ./build_all.sh > /dev/null
You can choose any
Then copy the ".bin" to the boot media (either the SD card or eMMC) in the /boot folder already hosting the Linux device trees.
Building Using Yocto¶
In Yocto Dunfell and newer, Variscite provides a Yocto recipe for building and installing firmware into the Yocto image. Note, the examples below apply to the original release of this recipe in Dunfell and thus some of the syntax (such as the overrides) may need to be updated for newer versions.
https://github.com/varigit/meta-variscite-fslc/tree/dunfell/recipes-bsp/freertos-variscite
This recipe installs the following firmware files:
| File | Memory | Loaded Using... |
|---|---|---|
| /boot/cm_<demo name>.bin.debug | TCM | U-Boot |
| /boot/cm_<demo name>.bin.ddr_debug | DDR | U-Boot |
| /lib/firmware/cm_<demo name>.elf.debug | TCM | Linux Remoteproc Framework |
| /lib/firmware/cm_<demo name>.elf.ddr_debug | DDR | Linux Remoteproc Framework |
If you have modified freertos-variscite in your own Git repository and kept the same directory structure, you can easily build your custom firmware by creating a bbappend file:
$ mkdir -p <your-layer>/recipes-bsp/freertos-variscite
$ nano <your-layer>/recipes-bsp/freertos-variscite/freertos-variscite_2.9.x.bbappend
Append SRC_URI and SRCREV to use your freertos-variscite Git repository
# Yocto Hardknott and older
SRC_URI_remove = "git://github.com/varigit/freertos-variscite.git;protocol=git;branch=${MCUXPRESSO_BRANCH};"
SRC_URI_append = " <your Git repository>"
# Yocto Kirkstone and newer
SRC_URI:remove = "git://github.com/varigit/freertos-variscite.git;protocol=git;branch=${MCUXPRESSO_BRANCH};"
SRC_URI:append = " <your Git repository>
SRCREV = "<your Git commit id>"
Append CM_DEMOS to build your firmware. For example, to build rtos_examples/freertos_hello:
# Yocto Hardknott and older
CM_DEMOS_append = "rtos_examples/freertos_hello"
# Yocto Kirkstone and newer
CM_DEMOS:append = "rtos_examples/freertos_hello"
Rebuild fsl-image-gui:
The firmware binary files should now be installed to /boot/ and elf files to /lib/firmware/
Memory types¶
The SDK allow linking using 2 different memory types: DDR, TCM.
Here is available a short summary of memory areas used by Cortex-M4 as described in related linker file.
| memory type | M4 memory area | A53 memory area | memory lentgh | linker file |
|---|---|---|---|---|
| DDR |
0x7E000000-0x7E1FFFFF (code)
0x7E200000-0x7E3FFFFF (data) 0x7E400000-0x7EFFFFFF (data2) |
0x7E000000-0x7E1FFFFF (code)
0x7E200000-0x7E3FFFFF (data) 0x7E400000-0x7EFFFFFF (data2) |
16MB (DDR) | MIMX8MQ6xxxJZ_cm4_ddr_ram.ld |
| TCM |
0x1FFE0000-0x1FFFFFFF (code)
0x20000000-0x2001FFFF (data) 0x7E000000-0x7EFFFFFF (data2) |
0x007E0000-0x007FFFFF (code)
0x00800000-0x0081FFFF (data) 0x7E000000-0x7EFFFFFF (data2) |
256kB (TCM) + 16MB (DDR) | MIMX8MQ6xxxJZ_cm4_ram.ld |
All linker files are locate in the armgcc folder of each demo.
The DDR reserved area must match the one declared in the kernel device tree: at least 1 GB of RAM is required on the SoM to allow Cortex-M4 accessing the range 0x7E000000 - 0x7EFFFFFF. For some reason, Cortex-M4 is not able to access RAM locations below 0x60000000: SoMs with 512 MB of RAM are not suitable to use Cortex-M4.
The RPMSG area is located at 0x40000000: all SoMs allow Cortex-M4 accessing the RPMSG area.
After launching the build_all.sh command the following folder will be created in the armgcc folder
- ddr_debug: containing DDR binaries compiled in debug mode (not stripped: symbols available)
- ddr_release: containing DDR binaries compiled in release mode (stripped: no symbols available)
- debug: containing TCM binaries compiled in debug mode (not stripped: symbols available)
- release: containing TCM binaries compiled in release mode (stripped: no symbols available)
Further details about memory mapping are available in the following i.MX 8M Applications Processor Reference Manual paragraphs:
- 2.1.2 Cortex-A53 Memory Map
- 2.1.3 Cortex-M4 Memory Map
Running a demo¶
Running a demo from U-Boot¶
To allow Cortex-M accessing shared resources without experiencing Linux kernel conflicts, a dedicated device tree must be loaded.
To enable Cortex-M:
To disable Cortex-M:
Binary demos must be loaded to the memory type used for linking.
To use TCM:
To use DDR:
To set the name of the Cortex-M binary
The .bin file is expected in the folder /boot of the booting media.
The U-Boot boot command will handle loading the Cortex-M firmware and start Linux for DART-MX8M.
For testing, it is possible to run the firmware manually:
Additional details and step by step procedure to run each of the demos is available online or in the following document:
For Yocto Dunfell and newer, this process can be simplified using /etc/remoteproc/variscite-rproc-u-boot
Please refer to the Yocto Scripts section below for more information
Running a demo from Linux¶
The Linux remoteproc framework can be used to load the Cortex m4 firmware from Linux userspace.
Note: As of 7 October 2024, NXP Application Note AN5317 states the following:
On i.MX 8M platforms, "remoteproc" stops only the Cortex-M CPU, not the Cortex-M system. Therefore, any in-flight Cortex-M bus transactions would hang after the CPU is halted and this can only be resolved with a full SoC reset. It is not recommended to stop the Cortex-M7 CPU in a production system. If the system must stop the Cortex-M7 CPU, reload the image and restart it. Then, the Cortex-M7 CPU must be in the WFI state and have no external access to the Cortex-M7 TCM memory through eDMA or other similar transactions. A possible solution is to implement a handshake between the Cortex-M and Cortex-A CPUs to confirm that the Cortex-M CPU is safe to stop or reset.
Note: The Linux remoteproc framework is not supported by all Yocto/B2Qt/Debian/Android releases.
Follow these steps to verify the Linux remoteproc framework is supported for your release:
- Select the software release from the [DART-MX8M](/dart-mx8m/ software overview page.
- Click on Release Notes.
- Look for the Cortex m4 Linux remoteproc support row in the release notes to see which version is supported. If Cortex m4 Linux remoteproc support is not in the release notes table, the Linux remoteproc framework is not supported.
After confirming Linux remoteproc support, follow these steps to use the framework:
Boot Linux after following the steps in #Running a demo from U-Boot
Increase kernel loglevel while debugging:
Check the state of the m4, it should be running already by U-Boot
If the state is 'running', stop the m4
Load new firmware (.elf file must already exist in /lib/firmware directory)
Run the new firmware
For Yocto Dunfell and newer, this process can be simplified using /etc/remoteproc/variscite-rproc-linux
Please refer to the Yocto Scripts section below for more information
Running a Demo using Yocto Scripts¶
In Yocto Dunfell and newer, Variscite provides scripts to simplify loading firmware via U-Boot or Linux:
| Script | Description |
|---|---|
| /etc/remoteproc/variscite-rproc-u-boot | Configure U-Boot to load firmware on boot |
| /etc/remoteproc/variscite-rproc-linux | Load and run firmware using Linux remoteproc framework |
Examples variscite-rproc-u-boot example on imx8mm-var-dart:
root@imx8mm-var-dart:~# /etc/remoteproc/variscite-rproc-u-boot -f /boot/cm_hello_world.bin.ddr_debug
Configuring for DDR memory
+ fw_setenv m4_addr 0x7E000000
+ fw_setenv fdt_file imx8mm-var-som-symphony-m4.dtb
+ fw_setenv use_m4 yes
+ fw_setenv m4_bin cm_hello_world.bin.ddr_debug
Finished: Please reboot, the m4 firmware will run during U-Boot
variscite-rproc-linux example on imx8mm-var-dart:
root@imx8mm-var-dart:~# /etc/remoteproc/variscite-rproc-linux -f /lib/firmware/cm_hello_world.elf.ddr_debug
Cortex-M: Stopping
[ 359.212638] remoteproc remoteproc0: stopped remote processor imx-rproc
[ 359.219709] remoteproc remoteproc0: powering up imx-rproc
Cortex-M: Loading cm_hello_world.elf.ddr_debug
[ 359.227101] remoteproc remoteproc0: Booting fw image cm_hello_world.elf.ddr_debug, size 269100
[ 359.238493] imx-rproc imx8mm-cm4: m4 ddr @ 0x7e000000
[ 359.243584] remoteproc remoteproc0: no dtb rsrc-table
[ 359.248797] imx-rproc imx8mm-cm4: Setting up stack pointer and reset vector from firmware in DDR
[ 359.257626] imx-rproc imx8mm-cm4: Stack: 0x7e400000
[ 359.262542] imx-rproc imx8mm-cm4: Reset Vector: 0x7e00030d
Cortex-M: Starting
[ 359.318074] remoteproc remoteproc0: remote processor imx-rproc is now up
Debugging a demo¶
JTAG Hardware¶
The Cortex-M firmware can be debugged using a JTAG debugger. Variscite recommends using a Segger J-Link Ultra+, J-Link Pro, or J-Link Wi-Fi debugger. You may also need a 9-pin Cortex-M adapter from Segger.
Note: If you encounter issues while using the ARM-JTAG-20-10 adapter from Olimex (such as the "TDO is constant high" error), you may need to leave pin 9 floating. This can be done by cutting the copper trace between the R2 pads, as indicated in the product page FAQ.
JTAG interface¶
The VAR-DT8MCustomBoard exports the DART-MX8M JTAG signals through J29, a standard 1.27" 10 pin header.
Here is the pinout:
| pin | signal | description | pin | signal | description |
|---|---|---|---|---|---|
| 1 | JTAG_VREF |
JTAG IO reference voltage,
connects to SOM_NVCC_3V3. |
2 | JTAG_TMS | JTAG Mode Select signal |
| 3 | GND | Digital Ground | 4 | JTAG_TCK |
JTAG Clock signal,
requires 10K pull down. |
| 5 | GND | Digital Ground | 6 | JTAG_TDO | JTAG Data Out signal |
| 7 | GND | Digital Ground | 8 | JTAG_TDI | JTAG Data In signal |
| 9 | JTAG_NTRST_C | JTAG Reset signal | 10 | NRST_CON |
Programmer Reset,
used to put the SOC in reset state. |
Please refer to board schematics for further details.
Developing with IAR Embedded Workbench¶
NXP provides a detailed step by step procedure to develop and debug MCUXpresso firmware using IAR Embedded Workbench and SEGGER SEGGER J-Link. Please refer to online or in the following document:
Developing with Visual Studio Code¶
Visual Studio Code, which is freely available, can be used to develop and debug MCUXpresso firmware:
For a full guide demonstrating how to get started, please refer to MCUXpresso Development with VS Code.
